Hypro

8.712-689.0

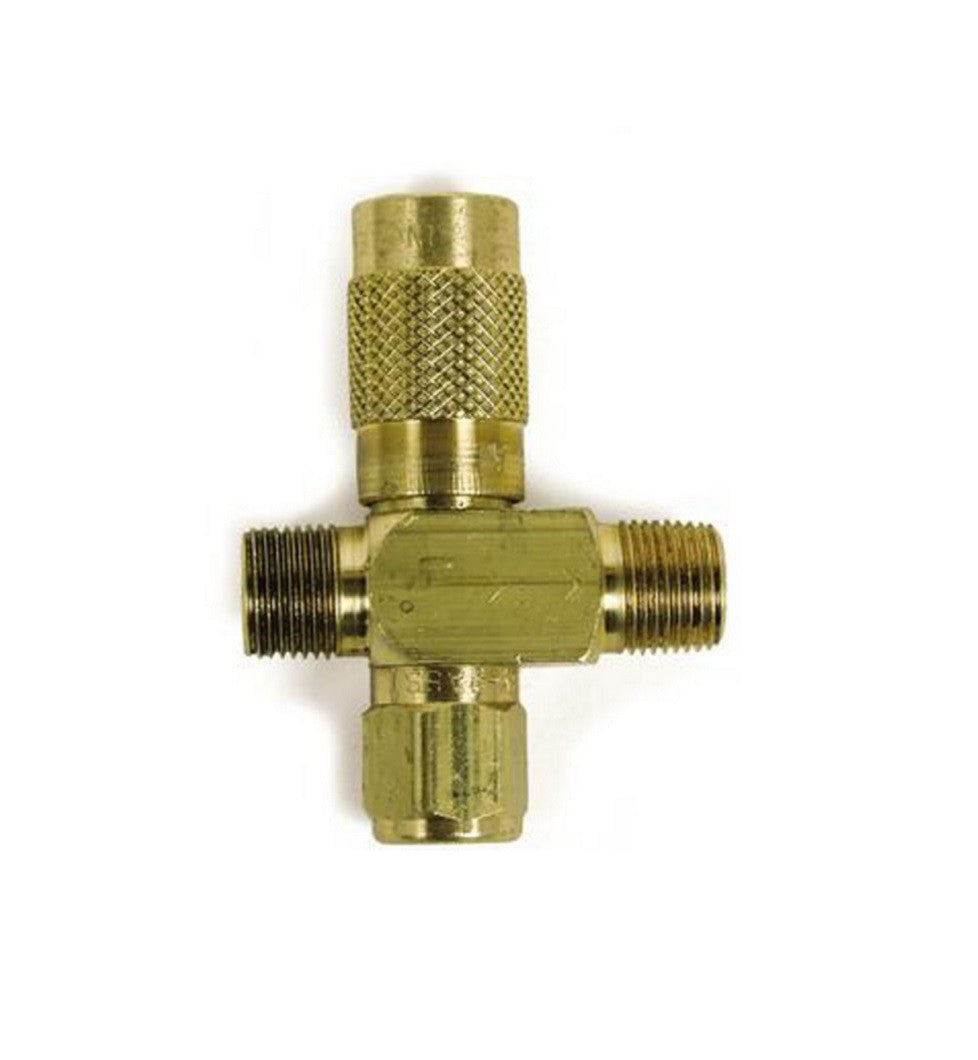

Hypro 3390 Series Compact Unloader Valve 5gpm

Model

Hypro Compact Unloader Valve - Trapped Pressure

5gpm max water flow

  • 3/8" male inlet / outlet
  • 1/4" female bypass

Models available:

  • 462739 - 200 to 500psi - (3390-0062D)
  • 462740 - 400 to 1000psi - (3390-0063D)
  • 462743 - 800 to 1500psi - (3390-0067D)
  • 462748* - 800 to 1500psi - (3390-0072D)

*Bypass port not NPT.  For close-coupled bypass operation with Hypro 2200 and 2300 PowerLine PLUS pumps.

**Caution**

Unloader valves are one of the most important safety devices on a pressure washer system. Failure to install and set the unloader properly could result in a very dangerous situation causing severe damage to the pump and possibly the operator.

Professional installation is required.
