General Pump - Interpump

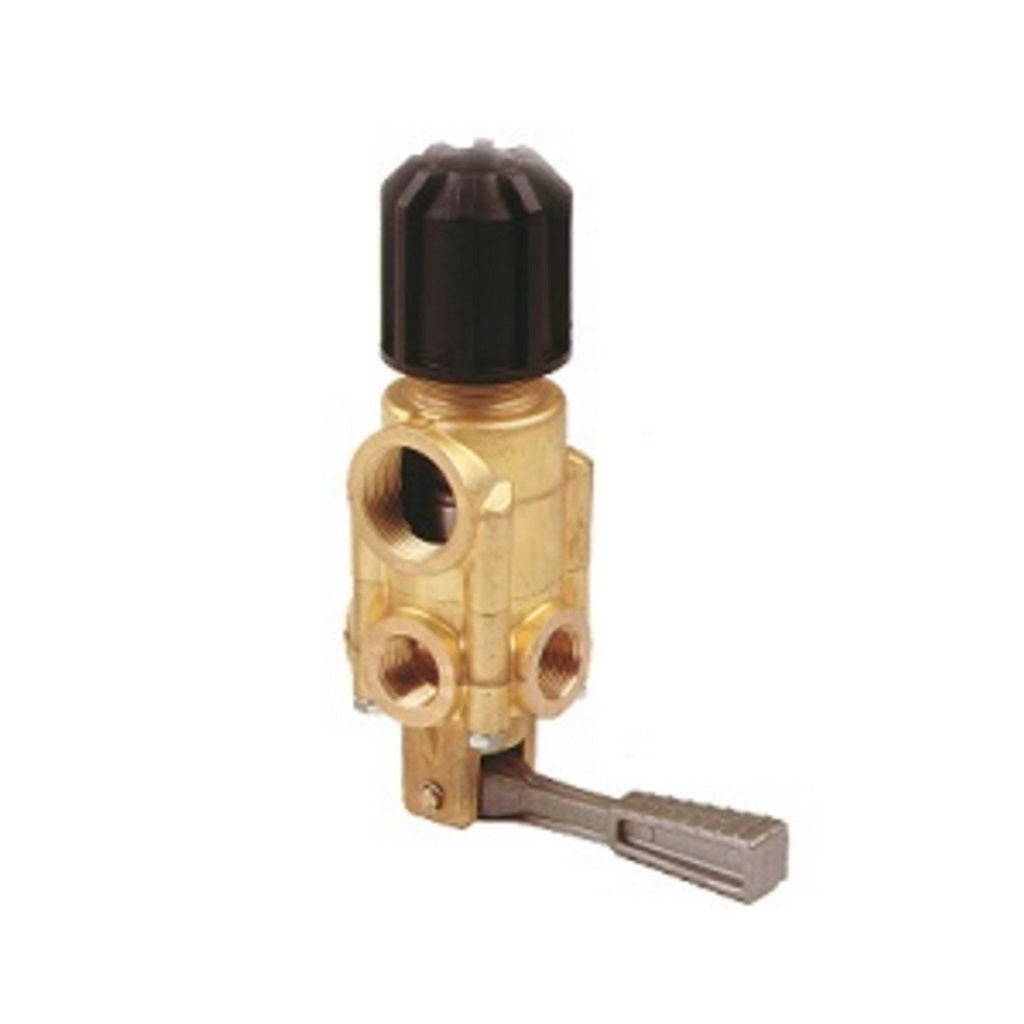

General Pump TIMAX Pressure Regulating Valve 52.8gpm 900psi

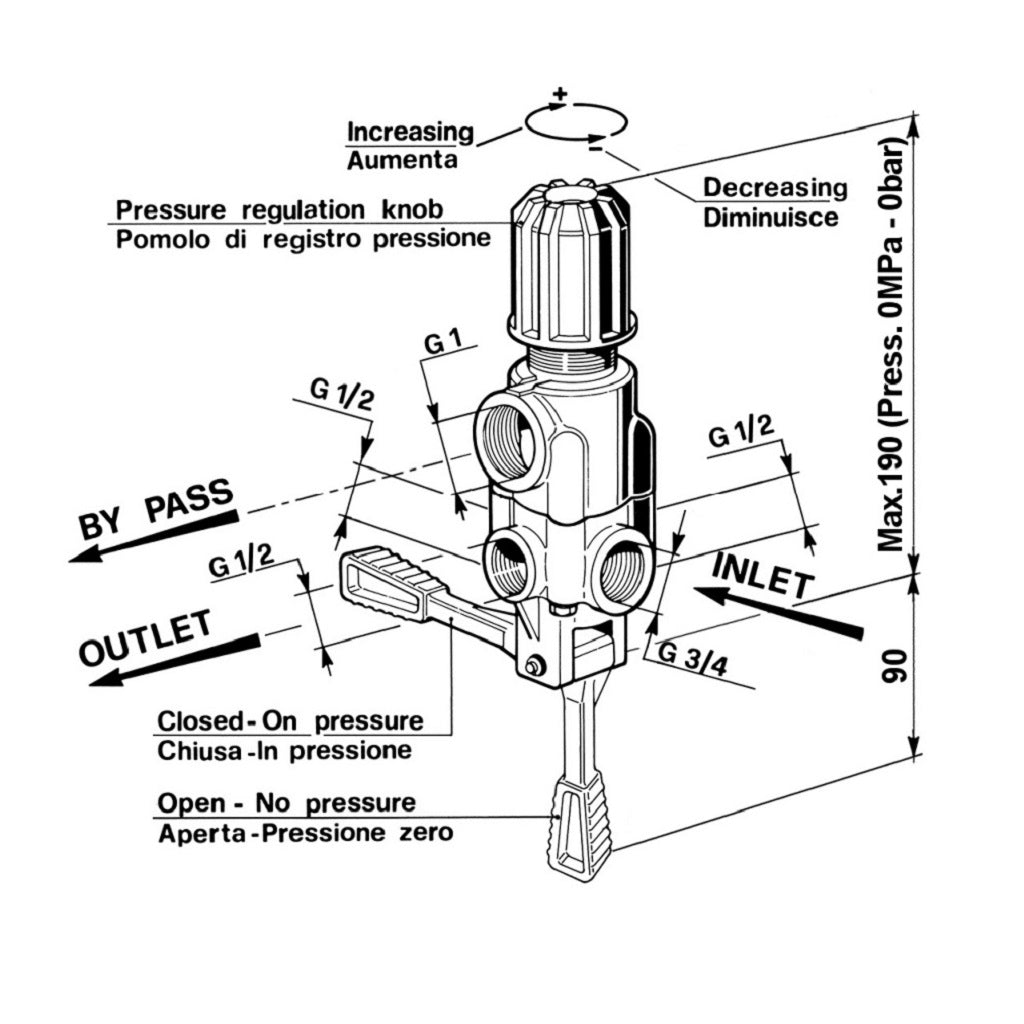

General Pump / Interpump TIMAX high volume regulator and safety valve.

900psi Maximum Rated Pressure

  • 52.8gpm rated flow
  • 3/4" Female Inlet
  • 1/2" Female Outlet (3)
  • 1" Bypass
  • 60°C / 140°F max temperature
  • Lever activated bypass mode.


Unloader valves are one of the most important safety devices on a pressure washer system. Failure to install and set the unloader properly could result in a very dangerous situation causing severe damage to the pump and possibly the operator.

Professional installation is required.
