Dwyer

8.710-097.0

Dwyer Chemical Flow Meter with Gauge

Model
Internal Materials
Flow Rate

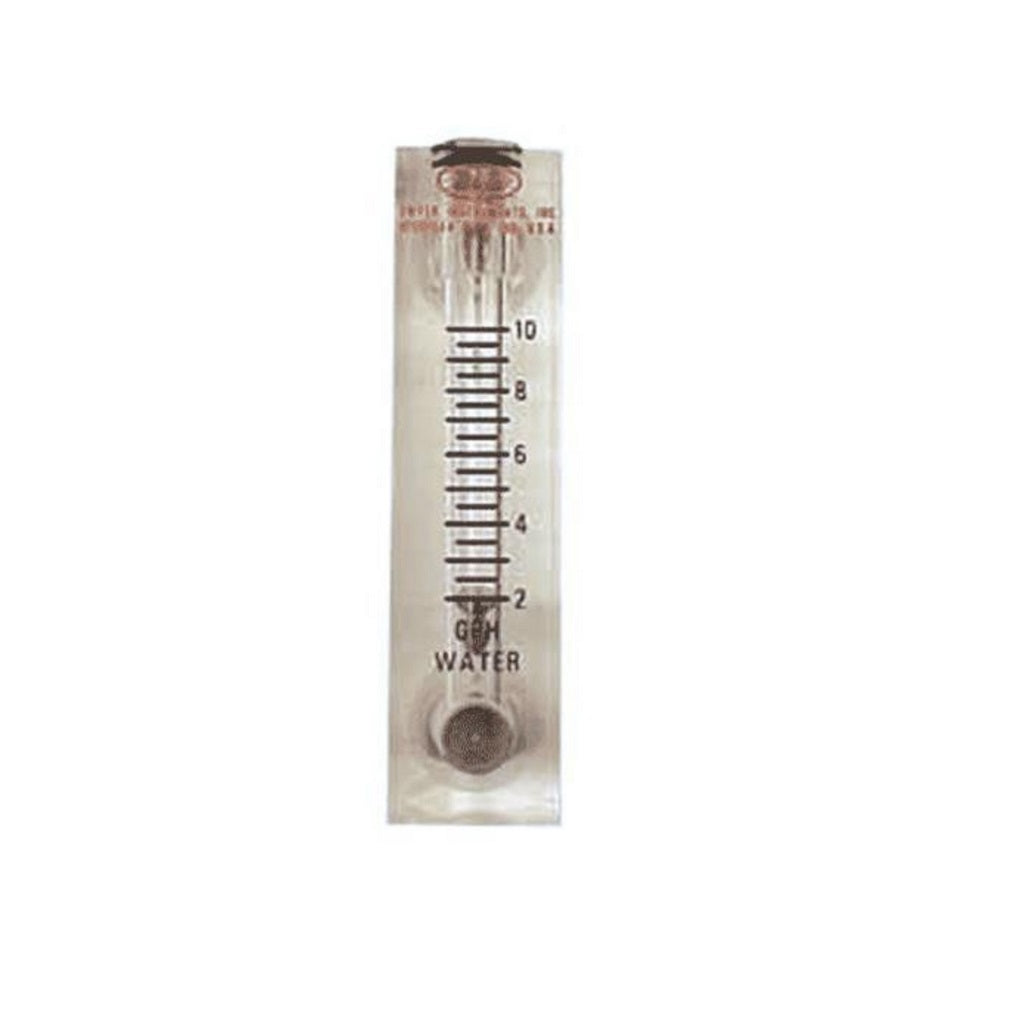

Dwyer flow meter with sight gauge is the answer to precision calibration and efficient operation of pressure washing systems.

  • Flow scale measure in gallons per hour (non-adjustable)
  • 100 psi max
  • 150° F Max Temperature
  • 1/8" Female NPT inlet / outlet
  • Clear acrylic body with metal mounting inserts for ease of installation
  • Accurate within ±5%
  • Compact size - 2" tall, 4-3/32" overall height
Choose the desired flow rate in GPH.

    Optional brassor stainless steel wetted parts.

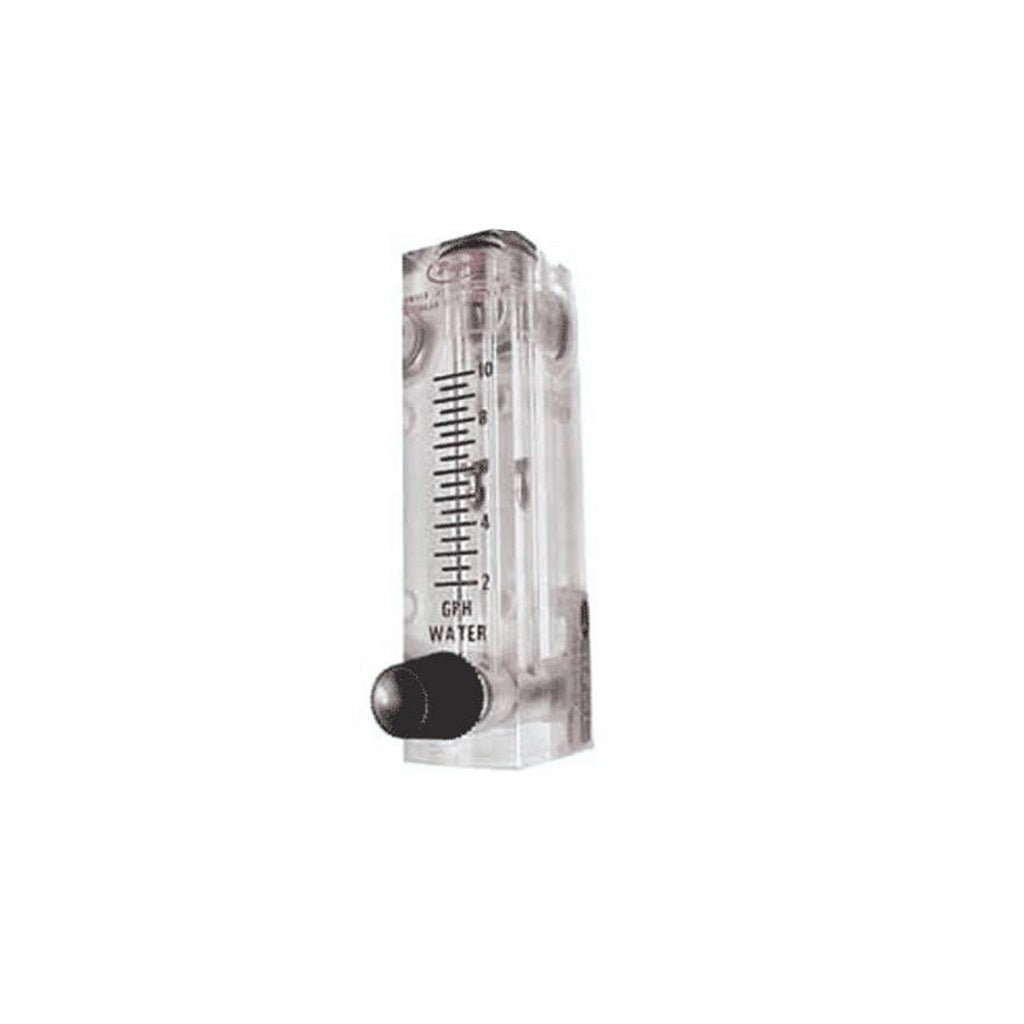

    Optional adjustable metering valve.
